Understanding your UI as a Tree

Your UI as a tree

Trees are a relationship model between items and UI is often represented using tree structures. For example on browsers, the DOM represents HTML elements while the CSSOM does the same for CSS. Similar for mobile, platform views relate to one another in a tree format. There’s even an Accessibility tree!

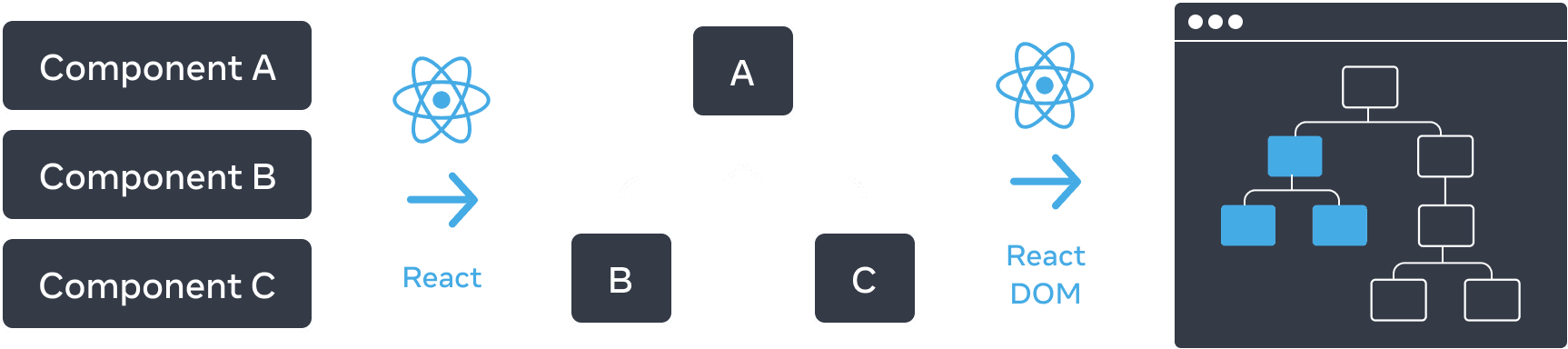

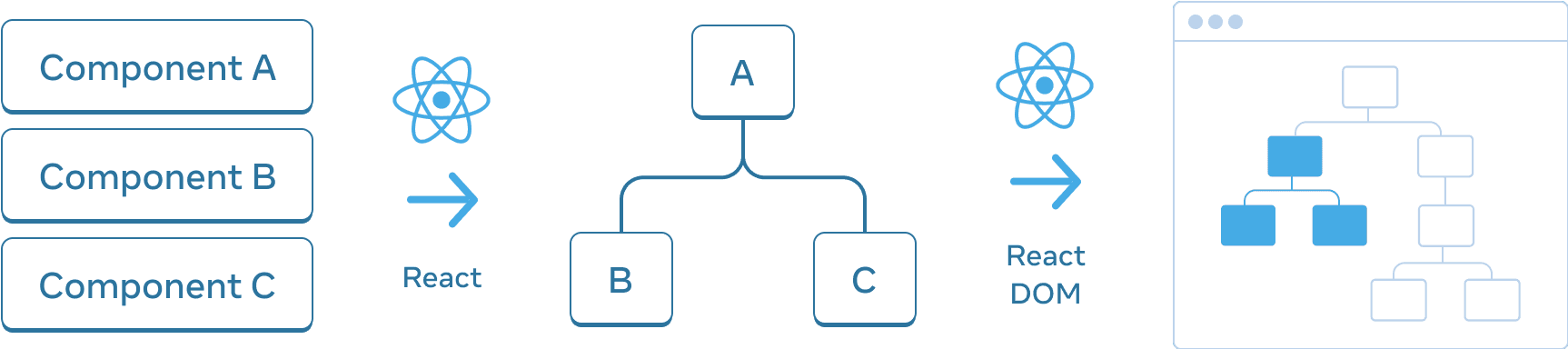

React also uses tree structures to manage and model the relationship between components in a React app. These trees are useful tools to understand how data flows through a React app and how to optimize rendering and app size.

The Render Tree

A major feature of components is the ability to compose components of other components. As we nest components, we have the concept of parent and child components, where each parent component may itself be a child of another component.

When we render a React app, we can model this relationship in a tree, known as the render tree.

Here is a React app that renders a random greeting.

import Title from './Title';
import Greeting from './Greeting';
import Copyright from './Copyright';

export default function App() {
  return (
    <>
      <Title text="Generate a random greeting" />
      <Greeting>
        <Copyright year={2004} />
      </Greeting>
    </>
  );
}

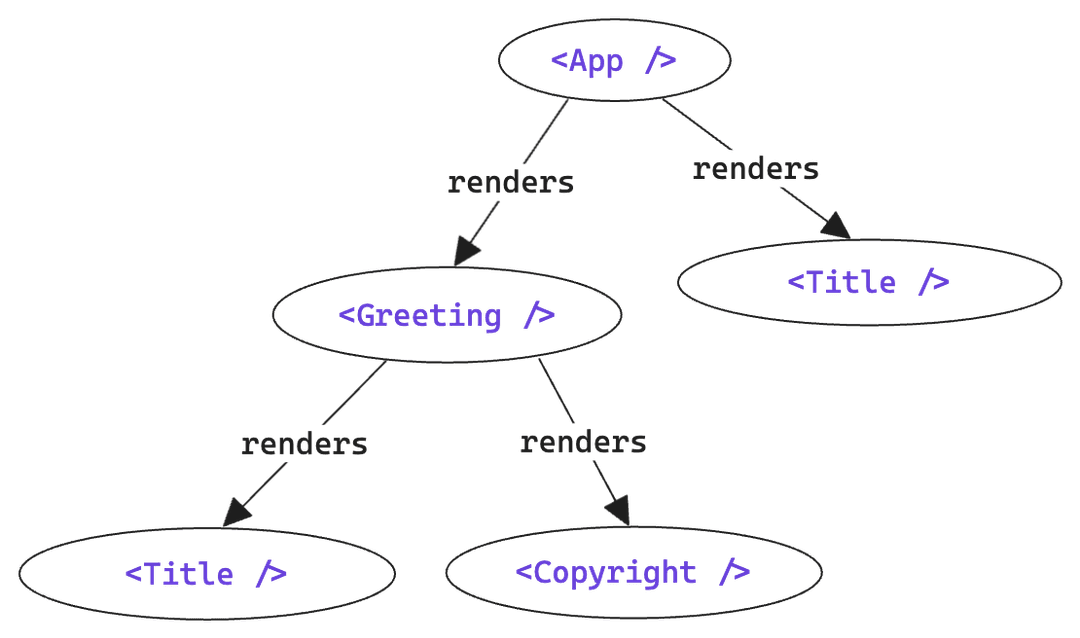

From the example app, we can construct the above render tree. Each node in the tree represents a component and the root node is the root component. In this case, the root component is App and it is the first component React renders. Each arrow in the tree points from a parent component to a child component.

We often refer to the components near the root of the tree as “top-level components”. They are ancestors and have a lot of descendent components. Components that have no children are referred to as “leaves”.

Deep Dive

Where are the HTML tags in the render tree?

Show Details

You’ll notice in the above render tree, there is no mention of the HTML tags that each component renders. This is because the render tree is only composed of React components.

React, as a UI framework, is platform agonistic. On react.dev, we showcase examples that render to the web, which uses HTML markup as its UI primitives. But a React app could just as likely render to a mobile or desktop platform, which may use different UI primitives like UIView or FrameworkElement.

These platform UI primitives are not a part of React. React render trees can provide insight to our React app regardless of what platform your app renders to.

A render tree represents a single render pass of a React application. With conditional rendering, a parent component may render different children depending on the data passed.

We can update the Greeting app to conditionally render either an image or a text greeting.

import { Title } from './GreetingMedia';
import Greeting from './Greeting';
import Copyright from './Copyright';

export default function App() {
  return (
    <>
      <Title text="Generate a random greeting" />
      <Greeting>
        <Copyright year={2004} />
      </Greeting>
    </>
  );
}

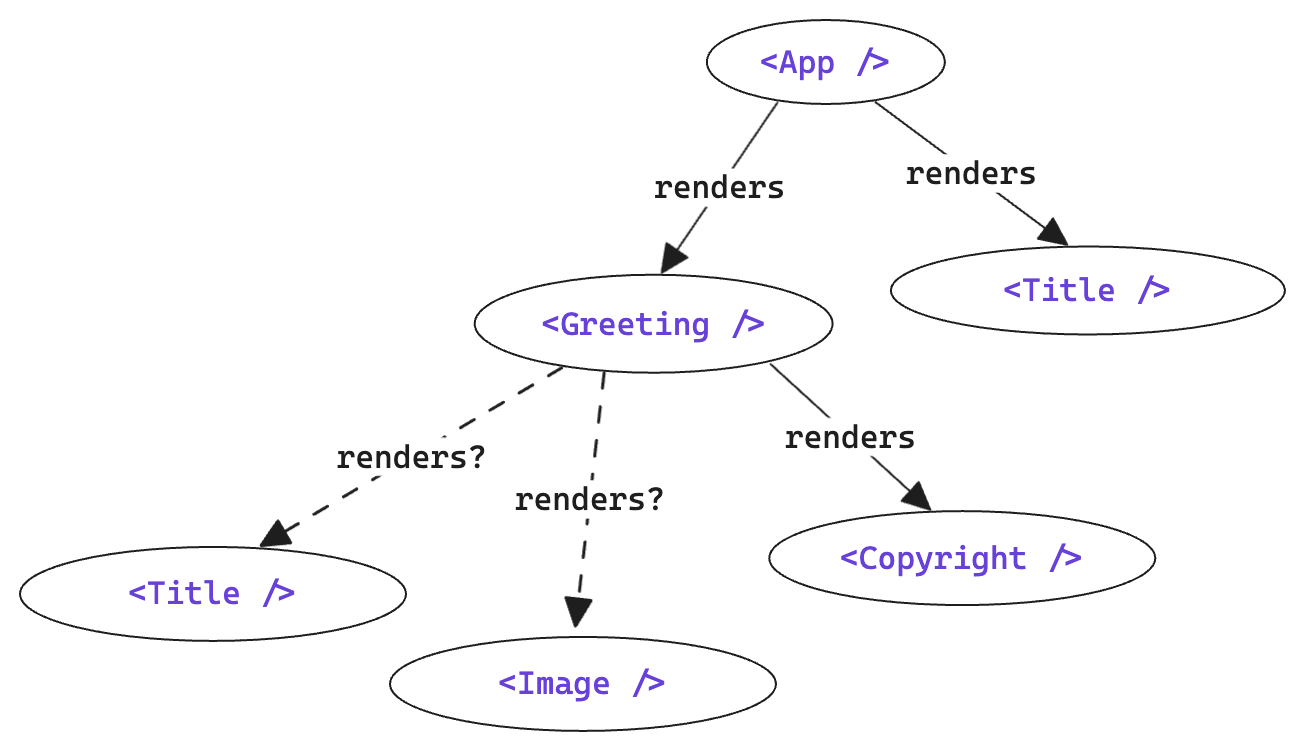

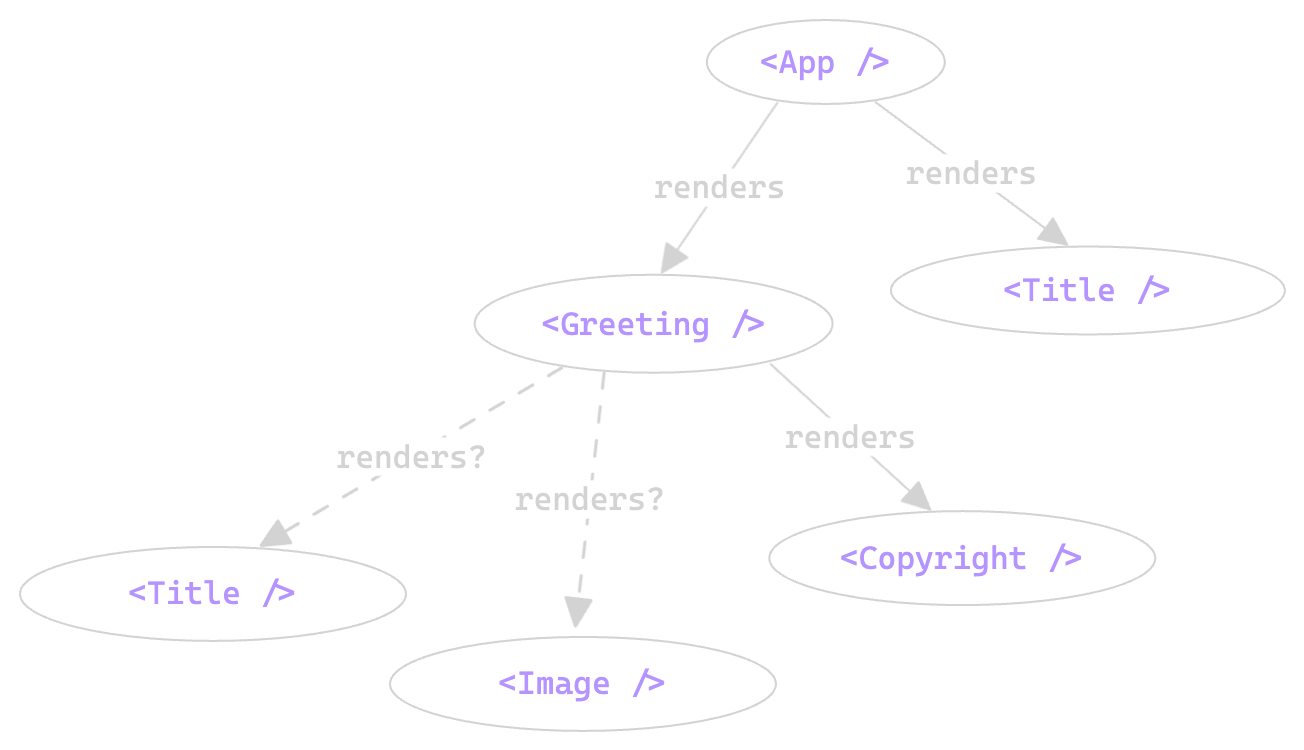

In this example, depending on what greeting.type is, we may render <Title> or <Image>. The render tree may be different for each render pass.

Although render trees may differ across render pases, these trees are generally helpful for identifying what the top-level components are in a React app. Top-level components affect the rendering performance of all the components beneath them and often contain the most complexity.

The Module Dependency Tree

Another relationship in a React app that can be modeled with a tree are an app’s module dependencies. As we break up our components and logic into separate files, we create JS modules where we may export components, functions or constants.

Each node in a module dependency tree is a module and each branch represents an import statement in that module.

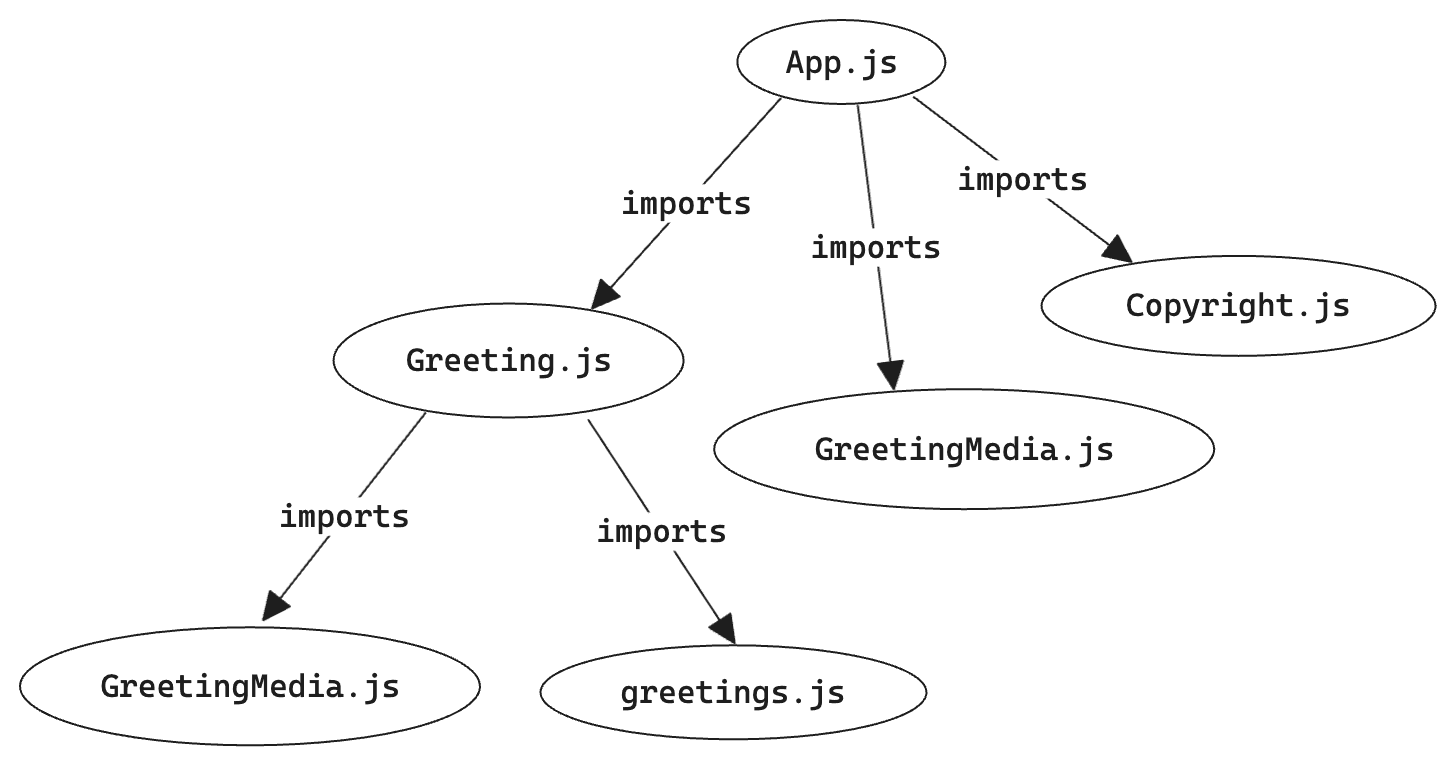

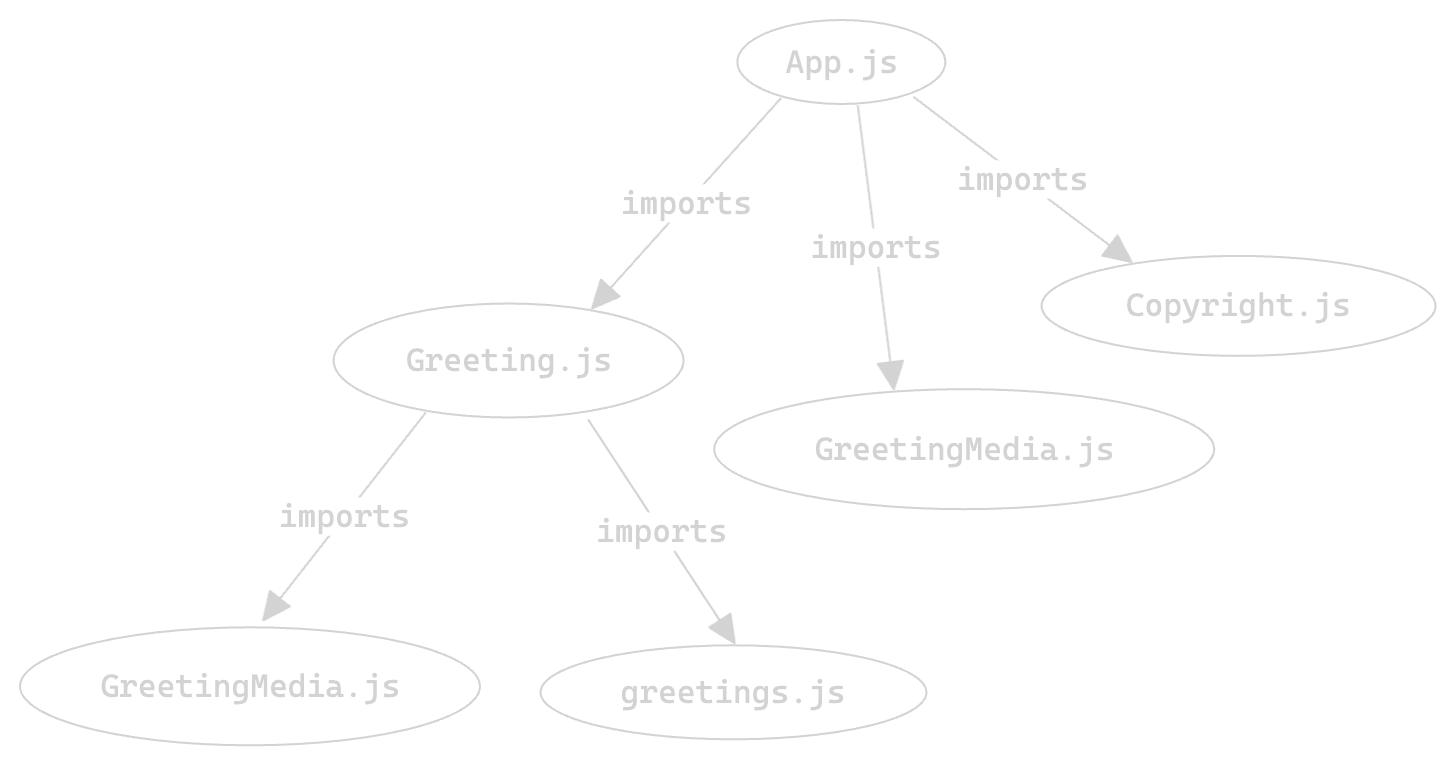

If we take the previous Greeting app, we can build a module dependency tree, or dependency tree for short.

The root node of the tree is the root module, also known as the entrypoint file. It often is the module that contains the root component.

Comparing to the render tree of the same app, there are similar structures but some notable differences:

• Tree nodes are modules vs. components. Often, a module exports a single component but in this case GreetingMedia.js exports both Title and Image.
• Non-component modules are also represented in this tree. The render tree only encapsulates components.
• Copyright.js appears under App.js but in the render tree, Copyright, the component, appears as a child of Greeting. This is because Greeting accepts JSX as children.

Dependency trees are useful to determine what modules are necessary to run your React app. When building a React app for production, there is typically a build step that will bundle all the necessary JavaScript to ship to the client. The tool responsible for this is called a bundler, and bundlers will use the dependency tree to determine what modules should be included.

As your app grows, often the bundle size does too. Large bundle sizes are expensive for a client to download and run so getting a sense of your app’s dependency tree may help with debugging the issue.

Recap

• Trees are a common way to represent the relationship between entities. They are often used to model UI.
• Render trees represent the nested relationship between React components across a single render.
• With conditional rendering, the render tree may change across different renders. With different prop values, components may render different children components.
• Render trees help identify what the top-level components are. Top-level components affect the rendering performance of all components beneath them. Identifying them is useful for debugging slow renders.
• Dependency trees represent the module dependencies in a React app.
• Dependency trees are used by build tools to bundle the necessary code to ship an app.
• Dependency trees are useful for debugging large bundle sizes and opportunities for optimizing what code is bundled.
